Define Editors¶

Editors give users a way to view and modify the data payload of a node or edge at runtime. Panel-ReactFlow decouples editors from types: you register editors separately, so you can swap editing UI without touching your type definitions.

Both node editors and edge editors share the exact same interface. If you can build a node editor, you already know how to build an edge editor.

When a user selects a node (or an edge), Panel-ReactFlow looks up the matching editor, creates the view, and displays it in the configured panel. If no editor is registered for a type, the built-in SchemaEditor is used: it auto-generates a form from the JSON Schema if one is present, or falls back to a raw JSON editor.

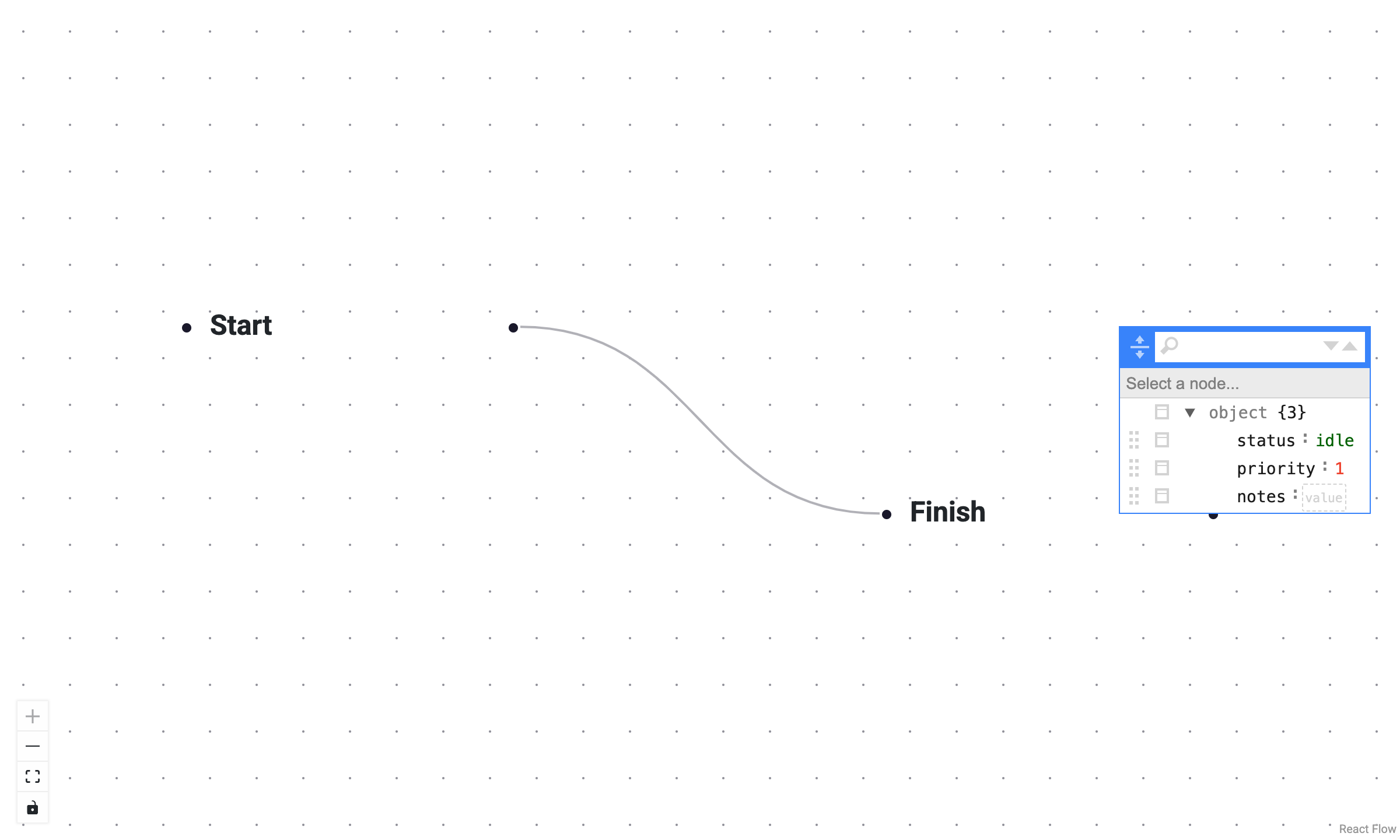

Screenshot: a node with schema-driven form editor open in the side panel

Editor signature¶

Every editor — whether a simple function, a lambda, or a class — receives the same arguments:

editor(data, schema, *, id, type, on_patch) -> Viewable

Argument	Description
`data`	The current `data` dict of the node or edge.
`schema`	The normalized JSON Schema (or `None`).
`id`	The node or edge ID.
`type`	The node or edge type name.
`on_patch`	Callback: call `on_patch({"key": value})` to push a partial update.

Built-in editors¶

Panel-ReactFlow ships two built-in editor classes:

Class	Behavior
`SchemaEditor`	Renders a form generated from the JSON Schema. Falls back to a raw JSON editor when no schema is available. This is the default.
`JsonEditor`	Always renders a raw JSON editor (powered by `panel.pane.JSON`).

from panel_reactflow import JsonEditor, ReactFlow, SchemaEditor

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    default_node_editor=SchemaEditor,   # already the default
    default_edge_editor=JsonEditor,      # override for edges
)

Node editors¶

Register a callable editor for a node type¶

The simplest way to provide a custom node editor is a plain function that returns a Panel viewable.

import panel_material_ui as pmui
from panel_reactflow import ReactFlow

def metric_editor(data, schema, *, id, type, on_patch):
    value = pmui.FloatSlider(value=data.get("value", 0), start=0, end=100)
    unit = pmui.Select(value=data.get("unit", "ms"), options=["ms", "s", "%"])
    value.param.watch(lambda e: on_patch({"value": e.new}), "value")
    unit.param.watch(lambda e: on_patch({"unit": e.new}), "value")
    return pmui.Column(value, unit)

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    node_editors={"metric": metric_editor},
)

Set a default node editor¶

If you want all node types to use the same custom editor, set default_node_editor instead of mapping each type individually.

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    default_node_editor=metric_editor,
)

Edge editors¶

Edge editors work identically. Register them via edge_editors (keyed by edge type) or default_edge_editor for a blanket default.

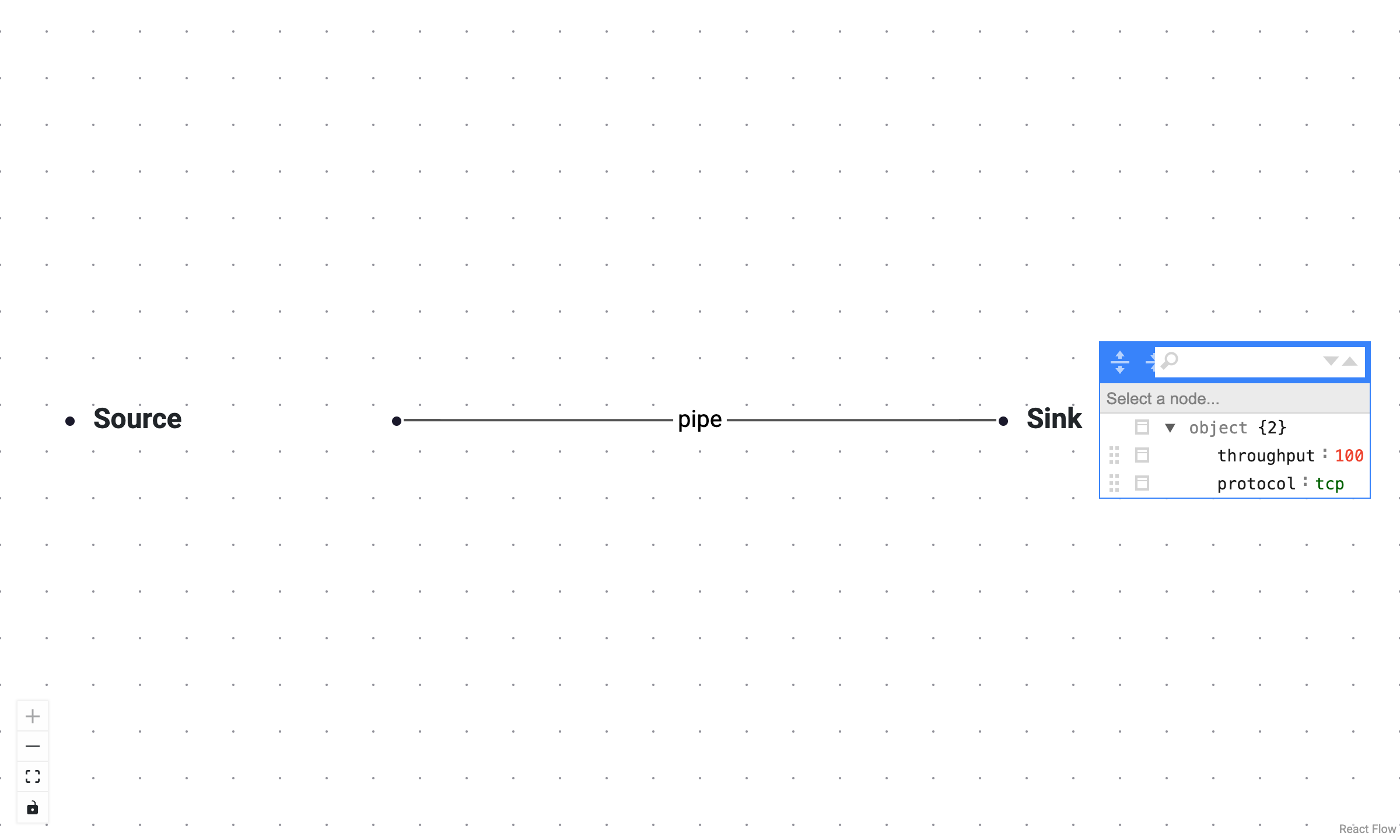

Screenshot: an edge editor open in the side panel

Schema-driven edge editor¶

If you declare an EdgeType with a schema and do not provide an explicit editor, the default SchemaEditor auto-generates a form — the same as for nodes.

from panel_reactflow import EdgeType, ReactFlow

edge_types = {
    "pipe": EdgeType(
        type="pipe",
        label="Pipe",
        schema={
            "type": "object",
            "properties": {
                "throughput": {"type": "number", "title": "Throughput"},
                "protocol": {
                    "type": "string",
                    "enum": ["tcp", "udp", "http"],
                    "title": "Protocol",
                },
            },
        },
    ),
}

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    edge_types=edge_types,
    # No edge_editors needed — SchemaEditor handles "pipe" automatically.
)

Custom callable edge editor¶

import panel_material_ui as pmui
from panel_reactflow import EdgeType, ReactFlow

def signal_editor(data, schema, *, id, type, on_patch):
    freq = pmui.FloatSlider(
        value=data.get("frequency", 1.0), start=0.1, end=100, step=0.1,
        label="Frequency (Hz)",
    )
    active = pmui.Checkbox(value=data.get("active", True), label="Active")
    freq.param.watch(lambda e: on_patch({"frequency": e.new}), "value")
    active.param.watch(lambda e: on_patch({"active": e.new}), "value")
    return pmui.Paper(pmui.Column(freq, active, margin=5), margin=0)

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    edge_types={"signal": EdgeType(type="signal", label="Signal")},
    edge_editors={"signal": signal_editor},
)

Class-based editors¶

For editors with complex state or lifecycle needs, subclass Editor. The base class stores data, schema, id, type, and on_patch for you. Implement __panel__() to return the view.

Class-based editors work for both nodes and edges.

import panel as pn
from panel_reactflow import Editor

class TitleEditor(Editor):
    def __init__(self, data, schema, **kwargs):
        super().__init__(data, schema, **kwargs)
        self._input = pn.widgets.TextInput(value=data.get("title", ""))
        self._input.param.watch(self._on_title_change, "value")

    def _on_title_change(self, event):
        if self._on_patch is not None:
            self._on_patch({"title": event.new})

    def __panel__(self):
        return self._input

Register it like any callable:

flow = ReactFlow(
    nodes=nodes, edges=edges,
    node_editors={"article": TitleEditor},
    edge_editors={"comment": TitleEditor},  # reuse the same class
)

Editor display modes¶

Control where node editors appear with editor_mode:

Mode	Description
`"side"`	Side panel to the right of the canvas.
`"node"`	Inline, directly inside the selected node.
`"toolbar"`	In the top toolbar area.

Edge editors always appear in the side panel (right side of the canvas).

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    editor_mode="side",
)

Tips¶

Call on_patch({"key": value}) for data changes. Labels are top-level and should be updated by replacing the node/edge in flow.nodes or flow.edges.
You can mix strategies: use schema-driven editors for most types and custom editors only where you need full control.
The same editor class or function can be registered for both node and edge types.
