Quickstart¶

Get a basic React Flow canvas running with labeled nodes, a single edge, and schema-backed editors. By the end of this page you will have an interactive graph that auto-generates editing forms from a JSON Schema.

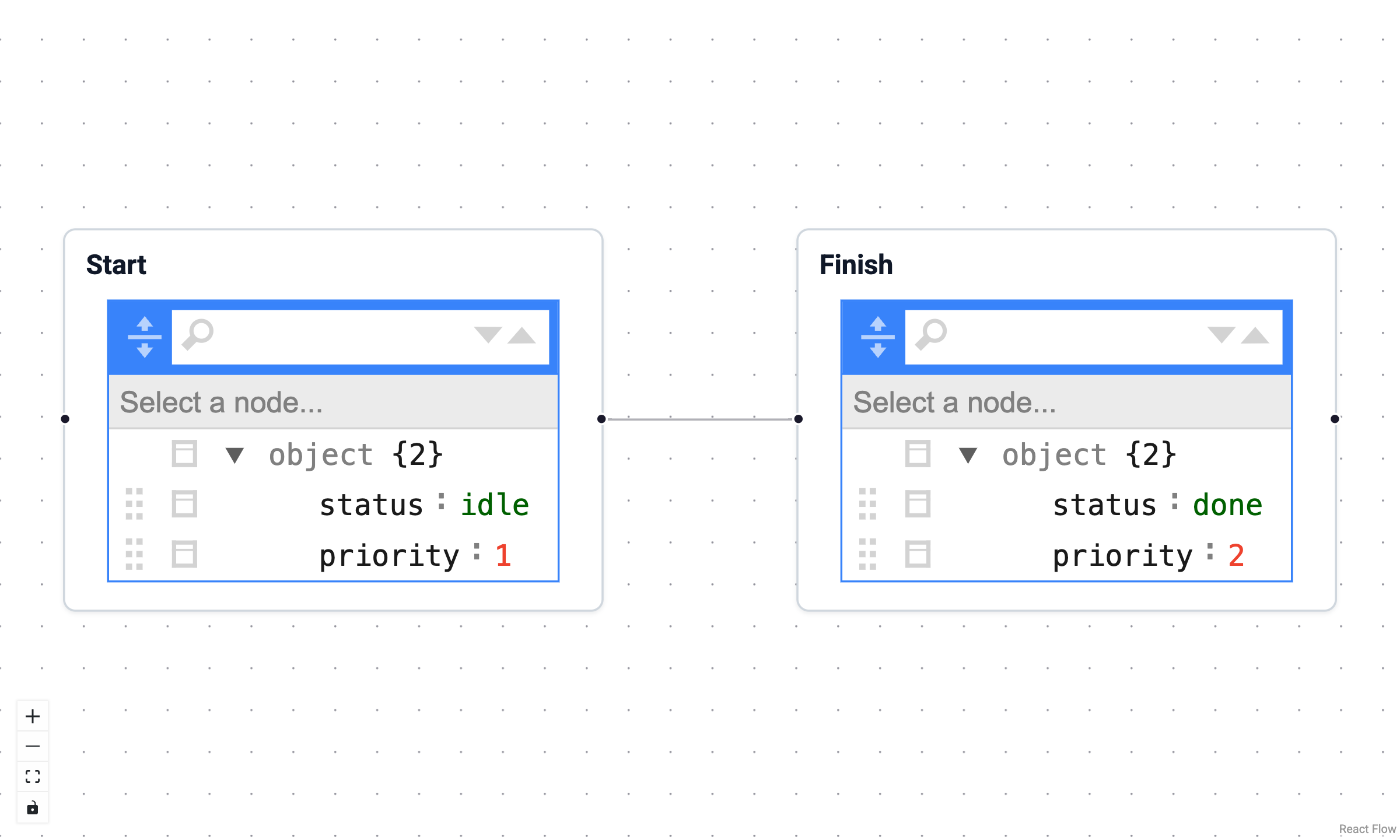

Screenshot: the finished quickstart app with two nodes and an auto-generated editor

Install¶

pip install panel-reactflow

Minimal app¶

Required Extension

ReactFlow uses Panel's JSONEditor widget for editing node and edge data. You must call pn.extension("jsoneditor") before creating ReactFlow instances to ensure the extension loads correctly. This should be done early in your application, typically right after your imports.

import panel as pn

from panel_reactflow import ReactFlow

pn.extension("jsoneditor")

nodes = [
    {
        "id": "start",
        "type": "panel",
        "label": "Start",
        "position": {"x": 0, "y": 0},
        "data": {"status": "idle", "priority": 1},
    },
    {
        "id": "finish",
        "type": "panel",
        "label": "Finish",
        "position": {"x": 350, "y": 0},
        "data": {"status": "done", "priority": 2},
    },
]

edges = [
    {"id": "e1", "source": "start", "target": "finish"},
]

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    editor_mode="node",
    sizing_mode="stretch_both",
)

flow.servable()

Run¶

panel serve app.py --show

What you just used¶

label is a top-level node field (not part of data).
node_types describe structure and schema only.
The default editor auto-generates widgets from the JSON Schema.
