Define Nodes & Edges¶

Every graph in Panel-ReactFlow is built from two lists: nodes and edges. Nodes represent entities on the canvas; edges represent connections between them. Nodes can be plain dictionaries, NodeSpec objects, or Node instances, so you can choose between lightweight payloads and object-oriented node classes.

This guide covers how to create nodes and edges, use the helper dataclasses, and update data after the graph is live.

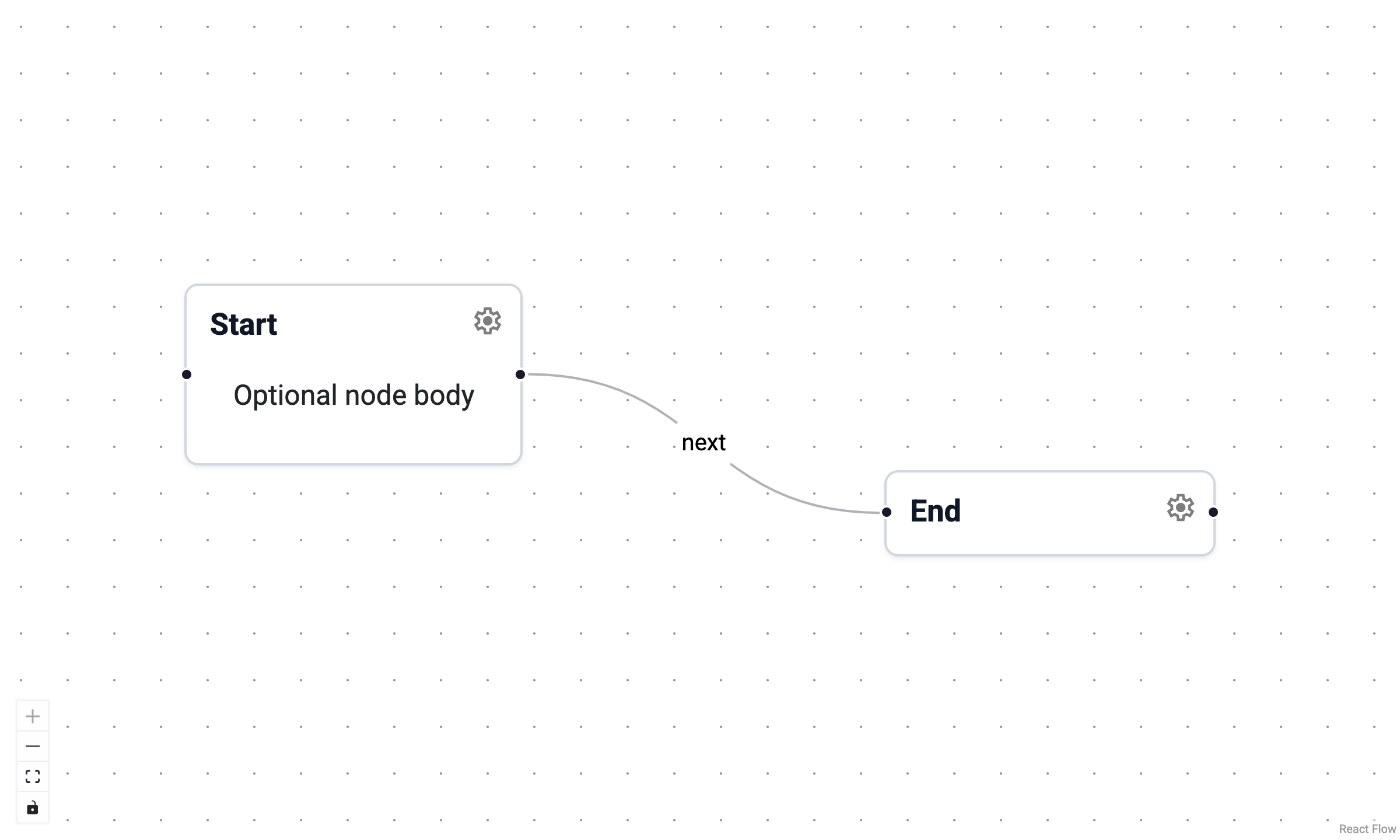

Screenshot: a simple two-node graph with one edge

Complete runnable example¶

This script is a minimal, working example that produces the visualization shown above.

import panel as pn

from panel_reactflow import ReactFlow

pn.extension("jsoneditor")

nodes = [
    {
        "id": "n1",
        "type": "panel",
        "label": "Start",
        "position": {"x": 0, "y": 0},
        "data": {"status": "idle"},
        "view": pn.pane.Markdown("Optional node body"),
    },
    {
        "id": "n2",
        "type": "panel",
        "label": "End",
        "position": {"x": 300, "y": 80},
        "data": {"status": "done"},
    },
]

edges = [
    {"id": "e1", "source": "n1", "target": "n2", "label": "next"},
]

flow = ReactFlow(
    nodes=nodes,
    edges=edges,
    sizing_mode="stretch_both",
)

pn.Column(flow, sizing_mode="stretch_both").servable()

How this code maps to the visualization¶

nodes defines the two boxes (Start, End) and where they appear.
edges defines the single connection labeled next.
view on n1 adds inline content inside that node.
ReactFlow(nodes=..., edges=...) renders the graph from those lists.

Define nodes¶

A node dict requires id, position, and data. The display label is a top-level field — keep it out of data so the frontend can render it without parsing the payload.

import panel as pn

nodes = [
    {
        "id": "n1",
        "type": "panel",
        "label": "Start",
        "position": {"x": 0, "y": 0},
        "data": {"status": "idle"},
    },
    {
        "id": "n2",
        "type": "panel",
        "label": "End",
        "position": {"x": 260, "y": 60},
        "data": {"status": "done"},
        "view": pn.pane.Markdown("Optional node body"),
    },
]

Key	Required	Description
`id`	yes	Unique string identifier.
`position`	yes	`{"x": float, "y": float}` canvas coordinates.
`data`	yes	Arbitrary dict of payload data.
`label`	no	Display text shown in the node header.
`type`	no	Node type name (default `"panel"`).
`view`	no	A Panel viewable rendered inside the node.

Define nodes as classes¶

Use Node when you want per-node Python state, event hooks, and optional custom view/editor methods.

import panel as pn
from panel_reactflow import Node, ReactFlow


class JobNode(Node):
    def __init__(self, **params):
        super().__init__(type="job", data={"status": "idle"}, **params)

    def __panel__(self):
        return pn.pane.Markdown(f"**{self.label}**: {self.data.get('status')}")

    def on_move(self, payload, flow):
        print(f"{self.id} moved to {payload['position']}")


nodes = [
    JobNode(id="j1", label="Fetch", position={"x": 0, "y": 0}),
    JobNode(id="j2", label="Process", position={"x": 260, "y": 60}),
]

flow = ReactFlow(nodes=nodes)

Node instances stay as Python objects in flow.nodes; they are serialized to dicts only when syncing to the frontend.

Define edges¶

Edges link two nodes by their id. Use the top-level label for the text shown on the edge.

edges = [
    {"id": "e1", "source": "n1", "target": "n2", "label": "next"},
]

Key	Required	Description
`id`	yes	Unique string identifier.
`source`	yes	ID of the source node.
`target`	yes	ID of the target node.
`label`	no	Text rendered on the edge.
`type`	no	Edge type (see built-in types below, or a custom type name).
`data`	no	Arbitrary dict of payload data.
`sourceHandle`	no	Specific output handle on the source node.
`targetHandle`	no	Specific input handle on the target node.

Built-in edge types¶

Type	Description
`"bezier"`	Smooth bezier curve (default).
`"straight"`	Straight line between nodes.
`"step"`	Orthogonal path with right angles.
`"smoothstep"`	Step path with rounded corners.
`"smart_bezier"`	Bezier curve that automatically routes around nodes.
`"smart_straight"`	Straight segments that automatically route around nodes.
`"smart_step"`	Step path that automatically routes around nodes.

Smart edge types use pathfinding to avoid overlapping with other nodes in the graph. They are useful when edges would otherwise pass through intermediate nodes.

edges = [
    {"id": "e1", "source": "n1", "target": "n2", "type": "smoothstep"},
    {"id": "e2", "source": "n1", "target": "n3", "type": "smart_bezier"},
]

Define edges as classes¶

Use Edge when you want object-oriented edge state and edge-specific hooks or editor logic.

from panel_reactflow import Edge, ReactFlow


class FlowEdge(Edge):
    def __init__(self, **params):
        super().__init__(type="flow", data={"weight": 1.0}, **params)

    def on_data_change(self, payload, flow):
        print(f"{self.id} updated:", payload["patch"])


flow = ReactFlow(
    nodes=[
        {"id": "n1", "position": {"x": 0, "y": 0}, "data": {}},
        {"id": "n2", "position": {"x": 260, "y": 60}, "data": {}},
    ],
    edges=[FlowEdge(id="e1", source="n1", target="n2")],
)

Edge instances stay as Python objects in flow.edges; they are serialized to dicts only when syncing to the frontend.

Data <-> parameter sync on `Node` and `Edge`¶

For class-based nodes/edges, Panel-ReactFlow supports two-way synchronization between data and declared parameters.

Which parameters are included?¶

Only subclass parameters with explicit non-negative precedence (precedence >= 0) are treated as data fields.

import param
from panel_reactflow import Node


class TaskNode(Node):
    status = param.Selector(default="idle", objects=["idle", "running", "done"], precedence=0)
    retries = param.Integer(default=0, precedence=0)
    _internal_state = param.String(default="x", precedence=-1)

In this example:

status and retries are included in data
_internal_state is not included

Sync behavior¶

Parameter -> data: updating node.status or edge.weight triggers an automatic data patch to the graph and frontend.
Data -> parameter: incoming graph patches/sync updates write values back onto matching parameters.
Schema generation: if no explicit type schema is provided, these included parameters are used to generate a JSON schema for editors.

Editor implication¶

If your editor widgets are bound with from_param(...), you usually do not need manual on_patch watchers for those data parameters.

Use the NodeSpec / EdgeSpec helpers¶

If you prefer a typed API, use the dataclass helpers. They validate fields at construction time and are automatically converted to dictionaries when passed to ReactFlow.

from panel_reactflow import NodeSpec, EdgeSpec, ReactFlow

# Create nodes and edges using NodeSpec/EdgeSpec
nodes = [
    NodeSpec(
        id="n1",
        type="panel",
        label="Start",
        position={"x": 0, "y": 0},
        data={"status": "idle"},
    ),
    NodeSpec(
        id="n2",
        type="panel",
        label="End",
        position={"x": 260, "y": 60},
        data={"status": "done"},
    ),
]

edges = [
    EdgeSpec(
        id="e1",
        source="n1",
        target="n2",
        label="next",
    ),
]

# No need to call .to_dict() - automatic serialization!
flow = ReactFlow(nodes=nodes, edges=edges)

Automatic Serialization

NodeSpec and EdgeSpec objects are automatically converted to dictionaries when passed to ReactFlow. You don't need to call .to_dict() manually.

However, .to_dict() is still available if you need to convert them explicitly for other use cases:

node_dict = NodeSpec(id="n1", position={"x": 0, "y": 0}).to_dict()

Connect to specific handles¶

When a node type defines multiple input or output handles (via inputs=["a", "b"] or outputs=["x", "y"]), you can route edges to specific handles using sourceHandle and targetHandle.

from panel_reactflow import ReactFlow, NodeSpec, EdgeSpec, NodeType

# Define node types with multiple handles
node_types = {
    "producer": NodeType(
        type="producer",
        label="Producer",
        inputs=[],
        outputs=["result", "error"]
    ),
    "consumer": NodeType(
        type="consumer",
        label="Consumer",
        inputs=["data", "config"],
        outputs=[]
    ),
}

# Create nodes
nodes = [
    NodeSpec(id="p", type="producer", position={"x": 0, "y": 0}, label="Producer").to_dict(),
    NodeSpec(id="c", type="consumer", position={"x": 400, "y": 0}, label="Consumer").to_dict(),
]

# Connect producer's "result" output to consumer's "data" input
edges = [
    EdgeSpec(
        id="e1",
        source="p",
        target="c",
        sourceHandle="result",
        targetHandle="data"
    ).to_dict(),
]

flow = ReactFlow(nodes=nodes, edges=edges, node_types=node_types)

Without sourceHandle and targetHandle, edges connect to the default (first) handle on each node.

Update data vs. presentation¶

A node or edge has an arbitrary data dictionary plus a set of top-level React Flow fields (label, style, type, className, position, ...). Each has its own patch method, and both send an incremental update to the frontend instead of replacing the full list:

# Patch a data field
flow.patch_node_data("n1", {"status": "running"})
flow.patch_edge_data("e1", {"weight": 0.75})

# Patch a top-level field
flow.patch_node_props("n1", {"label": "Start (running)", "className": "busy"})
flow.patch_edge_props("e1", {"style": {"stroke": "#ef4444", "strokeWidth": 4}, "type": "step"})

Passing None to patch_node_props()/patch_edge_props() clears the field so the element falls back to the CSS/theme default:

flow.patch_edge_props("e1", {"style": None})

If you use Node/Edge subclasses, you rarely need either method: assigning to a parameter patches the browser in place. Parameters you declare on the subclass are synced into data, the presentational base parameters are synced as top-level fields.

node.label = "Start (running)"                  # top-level label
edge.style = {"stroke": "#ef4444"}              # top-level style
edge.weight = 0.75                              # subclass param, goes into data

position and selected are the exception: the browser owns them while the user drags or selects, so assignment does not push them. Use patch_node_props() to move or select a node from Python.

Add and remove at runtime¶

You can use either plain dictionaries or NodeSpec/EdgeSpec objects with the add_node() and add_edge() methods:

# Using plain dictionaries
flow.add_node({"id": "n3", "position": {"x": 520, "y": 0}, "label": "New", "data": {}})
flow.add_edge({"source": "n2", "target": "n3", "data": {}})

# Or using NodeSpec/EdgeSpec (no .to_dict() needed)
from panel_reactflow import NodeSpec, EdgeSpec

flow.add_node(NodeSpec(id="n4", position={"x": 780, "y": 0}, label="Another"))
flow.add_edge(EdgeSpec(id="e2", source="n3", target="n4"))

flow.remove_node("n3")   # also removes connected edges
flow.remove_edge("e1")

remove_node() and remove_edge() also take several ids at once, either as separate arguments or as a single sequence. Pass them together rather than calling the methods in a loop: a batch assigns nodes and edges once, so the browser renders a single update instead of one per element.

flow.remove_node("n1", "n2", "n3")   # also removes connected edges
flow.remove_edge(["e1", "e2"])

More generally, every parameter assignment is synced to the browser on its own and the canvas re-renders per sync, so a sequence of updates renders each intermediate graph. Wrap any batch of changes in pn.io.hold() to combine them into a single render:

import panel as pn

with pn.io.hold():
    flow.nodes = new_nodes
    flow.edges = new_edges
