React to Events¶

Panel-ReactFlow emits events whenever the user interacts with the graph — clicking a node, dragging it to a new position, creating an edge, or deleting an element. You can subscribe to these events in Python and run arbitrary logic in response: update a status bar, log changes, sync to an external database, or trigger downstream computations.

Events are registered with flow.on(event_type, callback). The callback receives the event payload as its first argument and may optionally accept the ReactFlow instance as a second argument. You can also listen for all events at once by subscribing to "*".

Available events¶

Listen for a single event type¶

import panel as pn
from panel_reactflow import ReactFlow

flow = ReactFlow(nodes=nodes, edges=edges, sizing_mode="stretch_both")

log = pn.pane.Markdown("Waiting for events…")

def on_node_moved(payload, flow):
    node_id = payload["node_id"]
    pos = payload["position"]
    log.object = (
        f"**Moved** `{node_id}` → ({pos['x']:.0f}, {pos['y']:.0f}) "
        f"(nodes: {len(flow.nodes)})"
    )

flow.on("node_moved", on_node_moved)

pn.Column(log, flow).servable()

Handle events on Node classes¶

If you define nodes as Node subclasses, you can implement hooks directly on the node instance:

from panel_reactflow import Node, ReactFlow


class TaskNode(Node):
    def on_event(self, payload, flow):
        print("any node event:", payload["type"])

    def on_delete(self, payload, flow):
        print("deleted:", self.id)


flow = ReactFlow(nodes=[TaskNode(id="t1", position={"x": 0, "y": 0}, data={})])

Common hooks include on_event (wildcard), on_add, on_move, on_click, on_data_change, and on_delete.

When a Node subclass parameter with precedence >= 0 changes, it automatically patches node data and will trigger on_data_change.

Handle events on Edge classes¶

Edge subclasses can handle edge lifecycle and patch events directly:

from panel_reactflow import Edge, ReactFlow


class WeightedEdge(Edge):
    def on_data_change(self, payload, flow):
        print("edge patch:", payload["patch"])

    def on_delete(self, payload, flow):
        print("edge deleted:", self.id)

Common edge hooks include on_event, on_add, on_data_change, on_selection_changed, and on_delete.

Likewise, changing an Edge subclass data parameter (precedence >= 0) triggers on_data_change through the same data patch pipeline.

Listen for all events¶

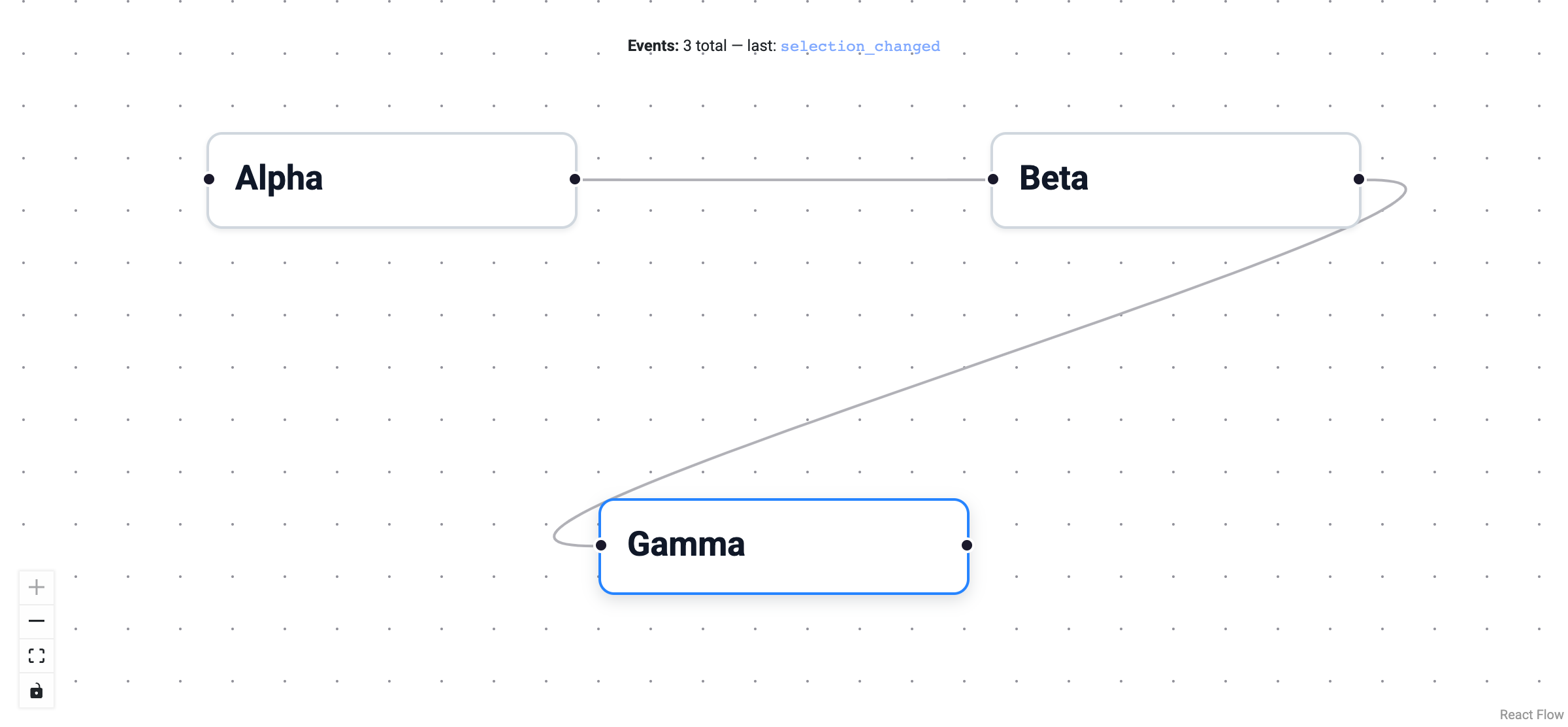

Use the wildcard "*" to receive every event. This is useful for debugging or building a generic activity log.

history = []
status = pn.pane.Markdown("")

def on_any_event(payload, flow):
    history.append(payload.get("type", "unknown"))
    status.object = f"**Events so far:** {len(history)} (edges: {len(flow.edges)})"

flow.on("*", on_any_event)

Respond to selection changes¶

selection_changed fires whenever the user clicks a node, an edge, or the canvas background. The payload includes lists of selected nodes and edges IDs.

details = pn.pane.JSON({}, depth=2)

def on_selection(payload, flow):
    details.object = {
        "selected_nodes": payload.get("nodes", []),
        "selected_edges": payload.get("edges", []),
        "total_nodes": len(flow.nodes),
        "total_edges": len(flow.edges),
    }

flow.on("selection_changed", on_selection)

Handle drops onto the canvas¶

Set drop_types to the MIME types the canvas accepts, and each drop of one of them emits drop. Anything that sets data under that type when a drag starts can be the source; a panel_material_ui.MenuList with draggable=True sends {"path": [...], "label": ...} under its drag_type. The payload's position is in flow coordinates, and target names the node, and handle when there is one, under the pointer, so a handler can add the dropped item there or wire it to the handle it landed on. Drops are ignored while editable is False.

palette = pmui.MenuList(items=[{"label": "CSV file"}, {"label": "Database"}], draggable=True)
flow = ReactFlow(drop_types=[palette.drag_type])

def on_drop(payload, flow):
    item = palette.items[payload["data"]["path"][0]]
    node_id = f"node-{len(flow.nodes)}"
    flow.add_node({"id": node_id, "label": item["label"], "position": payload["position"], "data": {}})
    target = payload["target"]
    if target and target["direction"] == "input":
        flow.add_edge({"source": node_id, "target": target["node_id"], "targetHandle": target["handle_id"]})

flow.on("drop", on_drop)

examples/drop_from_menu.py extends this with a grouped palette and places a node dropped on an input handle beside the node it feeds.

To accept files dragged in from the operating system, add "Files" to drop_types. The payload's data is then a list with one {"name", "type", "size", "content"} entry per file, each read as text:

flow = ReactFlow(drop_types=["Files"])

def on_file_drop(payload, flow):
    for file in payload["data"]:
        if file["name"].endswith(".json"):
            graph = json.loads(file["content"])
            flow.param.update(nodes=graph["nodes"], edges=graph["edges"])

flow.on("drop", on_file_drop)

Register multiple handlers¶

You can register as many handlers as you like for the same event — they are called in the order they were registered.

flow.on("node_added", save_to_database)
flow.on("node_added", update_status_bar)
flow.on("node_added", recalculate_layout)

Tips¶

• Callbacks run on the server in the Panel event loop. Keep them fast; offload heavy work with pn.state.execute() or background threads.
• Use "*" during development for a quick audit trail, then switch to specific event names in production.
• The selection parameter on ReactFlow also updates reactively. If you only need to watch the current selection, you can use flow.param.watch(callback, "selection") instead of the event API.
