Configure Nodes

Ports carry runtime values that flow between components. Configuration is different: it is design-time state that the dashboard author sets on a node while building the dashboard, not something wired from another component. Titles, page sizes, display toggles, color schemes, and similar knobs are all configuration.

Each node therefore has two pieces of state:

  • Node state - one param per input/output port, updated by the dataflow engine as edges propagate values.
  • Config state - one param per configuration field, edited through the node editor and saved with the dashboard.

This guide covers how to declare configuration, how it appears in the editor, and how it reaches your component at instantiation time.

Declaring configuration

There are three ways to declare configuration, all through @register.

1. Name Viewer params with config

For a Viewer component, the simplest option is to point at params that already exist on the class and mark them as configuration rather than input ports. Any name listed in config is removed from the component's input ports:

import panel as pn
import param
from panel_flowdash import register

@register(component=True, title="Data Table", config=["title", "page_size"])
class app(pn.viewable.Viewer):
    filtered = param.DataFrame()          # stays an input port

    title = param.String(default="")      # becomes configuration
    page_size = param.Integer(default=10, bounds=(5, 100))

    def __panel__(self):
        ...

Here filtered remains a wired input, while title and page_size become config fields. The param's default, label, and (for numeric/selector params) bounds carry over to the generated editor.

2. Provide a config schema with config_schema

When configuration is unrelated to the component's own params, or the component is a plain function, pass a config_schema. It accepts three forms:

A param.Parameterized subclass - every non-base param becomes a field:

class TableConfig(param.Parameterized):
    title = param.String(default="")
    page_size = param.Integer(default=10, bounds=(5, 100))

@register(component=True, config_schema=TableConfig)
def app(config, instance_config):
    ...

A JSON-Schema-like dict - properties map to fields; an enum becomes a selector, default and title are honored:

schema = {
    "properties": {
        "mode": {
            "type": "string",
            "enum": ["compact", "comfortable"],
            "default": "compact",
            "title": "Density",
        }
    }
}

@register(component=True, config_schema=schema)
def app(config, instance_config):
    ...

A Pydantic model - its fields and defaults are read the same way as the dict form.

3. Supply a custom editor with config_editor

By default FlowDash renders an auto-generated form from the config fields. To take full control of the editing UI, pass a config_editor callable. It is handed to the node editor and invoked with the current config data, the schema, and callbacks:

def editor(data, schema, *, id, type, on_patch):
    # build and return a custom editor view; call on_patch({...}) to apply changes
    ...

@register(component=True, config=["title"], config_editor=editor, ...)
class app(pn.viewable.Viewer):
    ...

How configuration reaches your component

The way config is delivered depends on the component style.

Viewer components. Config-state params are synced onto the Viewer instance when the node is created, and stay synced: editing a config field in the node editor updates the corresponding param on the live instance. You do not need to accept any extra argument, just declare the params and use them in __panel__.

Function components. Declare an instance_config parameter to receive the node's config-state object (a param.Parameterized instance). The existing config argument still carries the shared session state, so the two are distinct:

@register(component=True, config_schema=TableConfig)
def app(config, instance_config):
    # instance_config.title, instance_config.page_size ...
    return pn.pane.Markdown(instance_config.param.title.rx())

instance_config is only injected when the function's signature includes it, so existing components keep working unchanged.

In the editor and on disk

Configuration fields declared via config/config_schema are attached to the node type, so the node in the flow canvas shows an editable form (or your custom config_editor) for them. Open it from the gear button on the node.

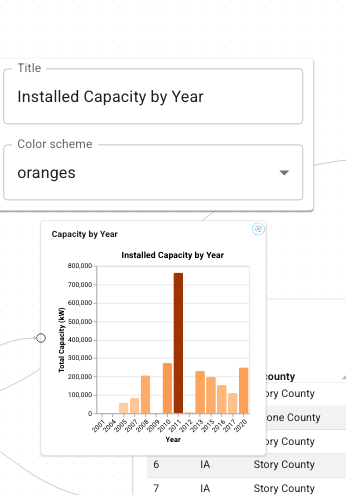

The auto-generated node config editor with Title and Color scheme fields

Edits are applied to the node's config state immediately and marked as unsaved.

When a dashboard is saved, each node's current configuration is written into its stored item; on load it is overlaid back onto a fresh config-state object before the component is instantiated, so nodes come back with the settings the author chose. Unknown or rejected values are skipped with a warning rather than failing the load.
